Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

ANHUI JIARUO IMPORT AND EXPORT CO.,LTD
Contact Now

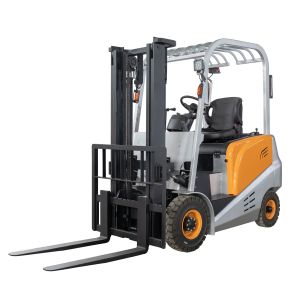

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

Brand Name : EFORK

Model Number : CPD15/CPD20/CPD25/CPD30

Certification : CE/CAS

Place of Origin : China

MOQ : 1

Price : us dollar 14000-18500 USD

Payment Terms : T/T

Delivery Time : 30

Power Source : electric

Operating type : seated

Max. loading capacity : 1500kg/2000kg/2500kg/3000kg

Wheel material : Solid

Max. lift height : 3000-6000mm

Drive control mode : AC

Roofguard height : 2185mm/2190mm

Ground clearance : 130mm

Battery Type : lead-acid battery

Contact Now

Counterbalance Electric Forklift Truck 4-Wheel Forklift

Product discription

4-wheel counter balance forklift truck
characteristic 1.1 model number CPD15 CPD20 CPD25 CPD30
1.2 power electric electric electric electric
1.3 operation manner seated seated seated seated
1.4 rated capacity Q(kg) 1500 2000 2500 3000
1.5 load center C(mm) 500 500 500 500
1.6 front overhang X(mm) 447 447 495 495
1.7 wheelbase Y(mm) 1450 1450 1600 1600
weight 2.1 weight(including battery) kg 2850 3260 4210 4410
wheel/chassis 3.1 wheel type solid solid solid solid
3.2 front wheel 6.50-10 6.50-10 23X9-10 23X9-10
3.3 rear wheel 5.00-8 5.00-8 18X7-8 18X7-8
3.4 front wheeltread b10(mm) 910 910 970 970
3.5 rear wheeltread b11(mm) 930 930 950 950
dimension 4.1 height-mast lowered h1(mm) 2095 2095 2095 2095
4.2 free lifting height h2(mm) 80 80 80 80
4.3 lifting height h3(mm) 3000 3000 3000 3000
4.4 Max. mast height h4(mm) 4110 4110 4110 4110
4.5 overhead guard height h14(mm) 2190 2190 2185 2185
4.6 fork height-mast lowered h13(mm) 40 40 45 45
4.7 mast tilt angle front/wheel ° 6/10 6/10 6/12 6/12
4.8 overall length l2(mm) 2330 2330 2529 2529
4.9 overall width b1(mm) 1105 1105 1160 1160
4.10 fork dimension s/e/l(mm) 35/100/1070 40/122/1070 40/122/1070 45/125/1070
4.11 fork adjustment b5(mm) 244-1042 244-1042 244-1020 244-1020
4.12 ground clearance m2(mm) 130 130 130 130
4.13 stack aisle width,pallet1000×1200 Ast(mm) 4015 4015 4170 4170
4.14 min.turning radius Wa(mm) 2090 2090 2200 2200
performance 5.1 travel speed (unload/load) km/h 12/11 12/11 12/11 12/11
5.2 lifting speed (unload/load) m/s 0.205/0.221 0.196/0.214 0.210/0.215 0.193/0.212
5.3 lowering speed (unload/load) m/s 0.350/0.260 0.365/0.240 0.365/0.240 0.365/0.240
5.4 max. gradeability(unload/load) % 20/15 20/15 20/12 20/12
5.5 driving brake hydraulic hydraulic hydraulic hydraulic
motor 6.1 drive motor power kw 8 8 11 11
6.2 lift motor power kw 8.6 8.6 12 12
6.3 battery type lead-acid lead-acid lead-acid lead-acid
6.4 battery voltage/capacitance V/Ah 48V400Ah 48V450Ah 48V480Ah 48V550Ah
6.5 charger V/A 48V/50A 48V/60A 48V/60A 48V/70A
others 7.1 drive control mode AC AC AC AC

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

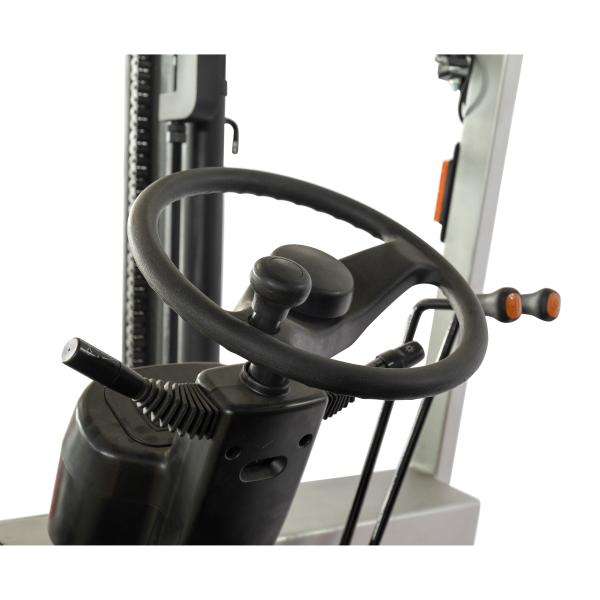

Detailed images

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kgCounterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kgCounterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kgCounterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

Packing&delivery

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kgCounterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

Certifications

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

Our service

Counterbalance Electric Forklift Truck With 4 Wheel Loading 1500kg

FAQ

1. How to place an order?
A:Tell us your detail requirements by email or on Trademanager or Skype:efcc3288667 ,We will send you our offer in 24 hours.

If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.

2. What's your Price Terms?
A: We offer FOB ,FCA, CIF, CFR, EXW and DDU price terms.

3. Are you Factory?
A: Yes.

4. Can you send the machine to my factory in other city to load the container?
A: Yes, please tell us the detail address, we can arrange to send your factory in time.

5. Are the forklift trucks covered by a warranty?
A: Yes. All our machines carry a full 1 year major parts warranty.

6. Can i get discounts?
A: Yes, For big order, old customer and frequent customers, we give reasonable discounts.

7. How to place an order?
A:Tell us your detail requirements(Load Capacity? Lifting height etc.) by email or on Trademanager or Skype, please send us

your purchase order,or you can ask us to send you a proforma invoice for your order.

8. How could I pay them?
A: We accept Western Union (for parts order, order value less than $2500); T/T(bank transfer,order value at least $2000); L/C

(Irrevocable LC at sight,order value at least $10000 )

9. Can you add our own logo on the products or use our designs?
A: Yes,of course you can add logo on your products! We provide OEM/ODM service.
